Orthophos XG 3

The horizontally and vertically reduced pediatric panoramic program offers outstanding image quality with the lowest dose. Ideal for practices that treat a lot of children. The unit’s easy operation and seamless integration into your practice’s daily routines will save you valuable time. The high image quality and proven Sidexis software guarantee that you will come to a safe diagnosis quickly and easily.

global site

Do you want to change to Dentsply Sirona ?

Quality from the very start

High quality. Durable. Safe: the Orthophos XG 3 X-ray unit is the perfect basic equipment for general dentists. The unit's easy operation and seamless integration into your practice's daily routines will save you valuable time. The high image quality and proven Sidexis software guarantees that you will reach a safe diagnosis quickly and easily. The positioning can be very easily reproduced, since image parameters such as the bite block height are saved together with the image data. A bitewing program is available, which helps in special cases and patient situations where intraoral images cannot be used and a shorter panoramic program with a reduced dose, which is suitable for treating children, is also available.

Your Benefits at a Glance

The perfect basic equipment for general dentists.

Striking image quality with CsI and ASTRA suits your diagnosis

Sophisticated diagnostic options at your fingertips for endodontics, periodontics, implantology, orthodontics and surgery.

All the digital advantages at great value for money

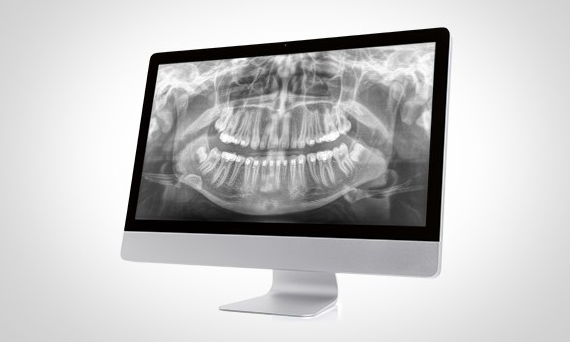

Great image quality that is instantly accessible, easy data handling and image diagnosis via Sidexis 4 and great patient communication with Sidexis iX - with Orthophos XG 3 you get all the digital advantages for your practice at low costs.

Investment security based on tried and tested quality

With Orthophos XG 3, you know what to expect: proven "Made in Germany" quality installed in thousands of practices worldwide.

Great fit for limited space offering

With a very compact but smart design, the Orthophos XG 3 is a great fit for practices with limited space to share.

Digitalizing my imaging process was definitely the right decision and I have the right partner on my side with the Orthophos XG 3. As equipped, the Orthophos provides me with the perfect unit for everyday use.

Dr. med. dent. Paul Rau, Edenkoben, Germany

Feature Highlights

ASTRA

The ASTRA software algorithm considerably improves the quality of 2D panoramic and Ceph images.

Learn more

ALARA

The best image quality at the lowest possible dose - following the ALARA principle.

Learn more

2D Panoramic Imaging: Revolutionary Technologies

Even though 3D X-rays are increasingly becoming established in a growing number of dental practices, in many cases 2D imaging still has a rightful place, largely due to radiation hygiene. It is a core component of modern dental diagnostics. In terms of improvements in image quality, the options available in 2D technology are far from exhausted.

The Orthophos XG 3 combines a premium "Made in Germany" tube head (0.5 mm focal spot) with a CsI sensor (0.027 mm pixel size) to generate the sharpness and clarity needed for your clinical tasks. The innovative ASTRA software algorithm significantly improves the quality of 2D panoramic and ceph images by minimizing black margins around metal fillings and getting rid of excessive contrast that could lead to misdiagnosis of caries, for example.

Sample Gallery of 2D Panoramic Images

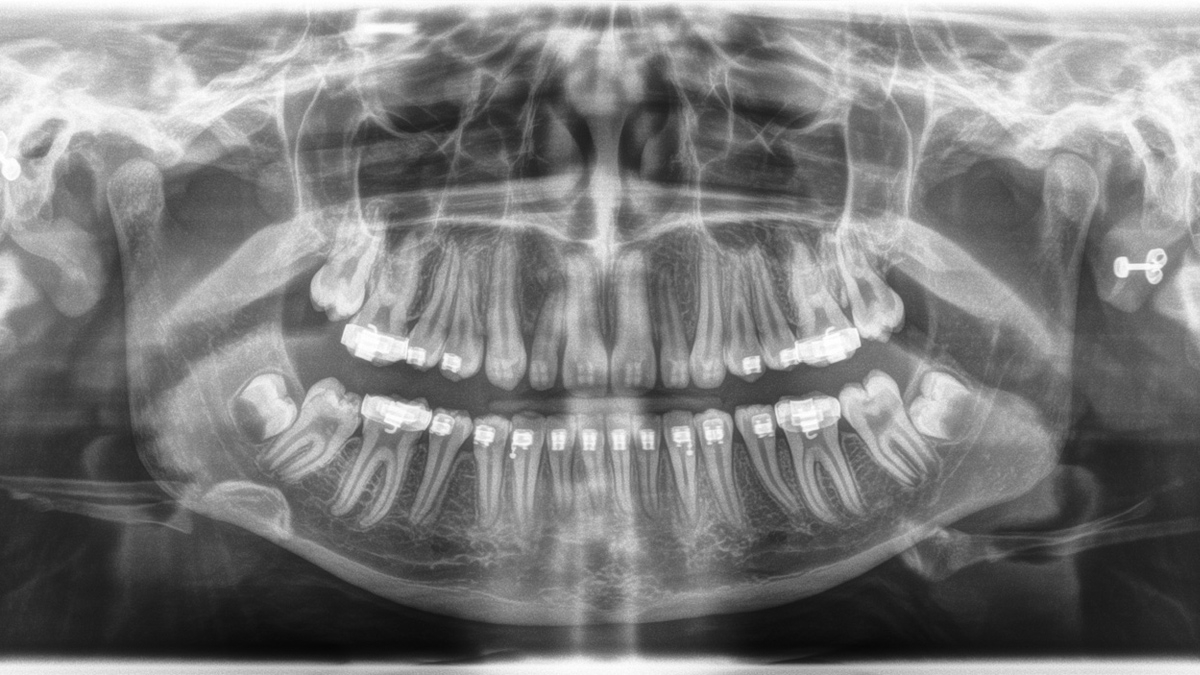

Given indications

Adolescent, full dentition with orthodontic braces

Agenesis of teeth 18 and 28 with the presence of odontoblasts in 38 and 48

The incomplete root growth in 37 and 47 as well as the root development of the two wisdom teeth are evidence of the patient's young age

Maxillary sinuses and surrounding anatomical structures not radiographically apparent

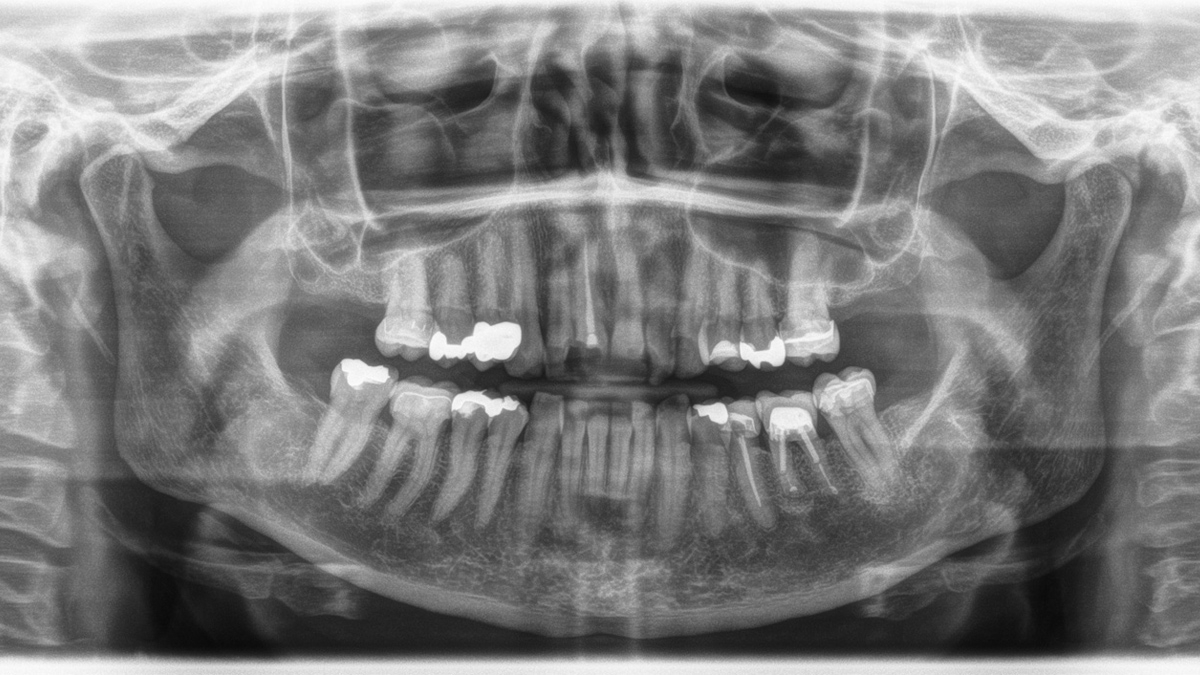

Given indications

Prosthetic and prophylactic treatment of dentition

Hypodense clearly limited changes to the hard tooth substance in teeth 12, 11 and 22 (presumably non-x-ray-opaque composite fillings here)

Hyperdense filling material in the roots of teeth 11, 36 and 35 without an indication for periapical lucency

Status post apicoectomy on tooth 36 with retrograde obturation of the mesial and distal roots. Good osseous union of the apical bone tissue, no indication of recurrent periapical osteolyses

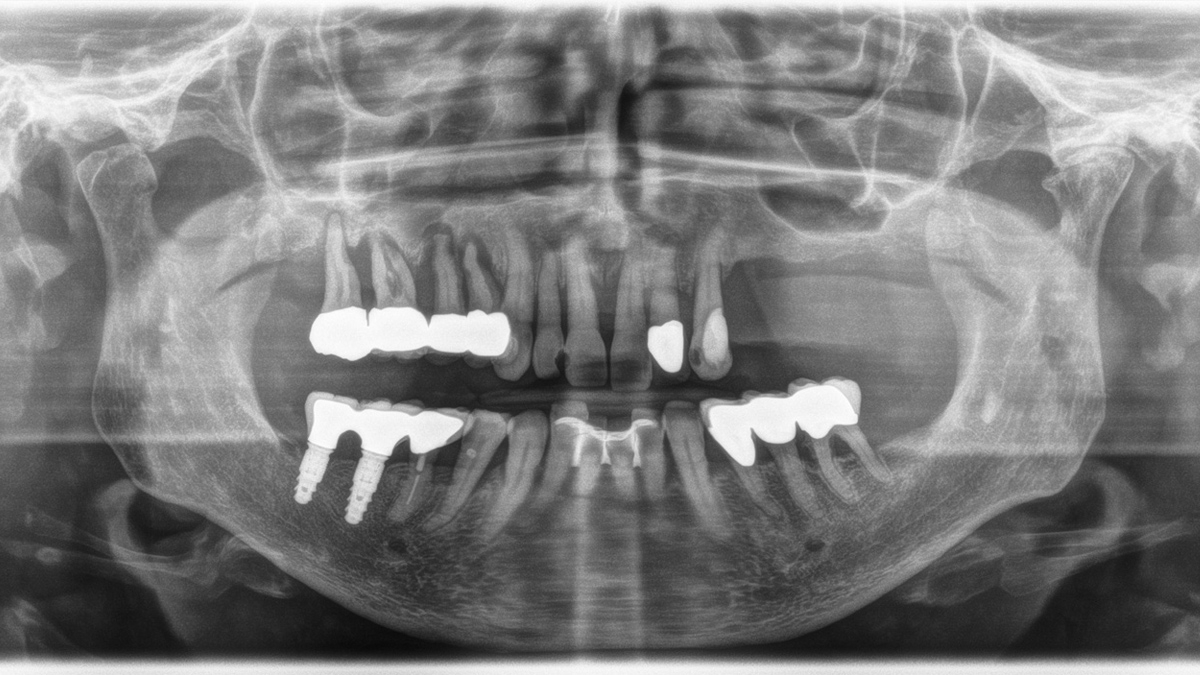

Given indications

Dentition badly damaged by periodontitis, with generalized horizontal bone resorption and vertical cavities with teeth 17 – 14 requiring extraction

Hypodense, homogenous and clearly delimited changes to the hard tooth substance on 12 mesial, 11 distal and 23 mesial with suspected caries or a differential diagnosis of non-x-ray-opaque composite fillings

Differential diagnosis: Caries or non-x-ray opaque composite fillings

PFM bridge at teeth 36 – 34 due to furcation on tooth 36 and calculus deposits mesially.

Splinting of teeth 32-42 from past periodontal history

Hyperdense filling material in tooth 45 without an indication for periapical lucency.

Implant-based treatment in the region of teeth 46 and 47 with radiographically inconspicuous PFM hybrid bridge 45 – 47

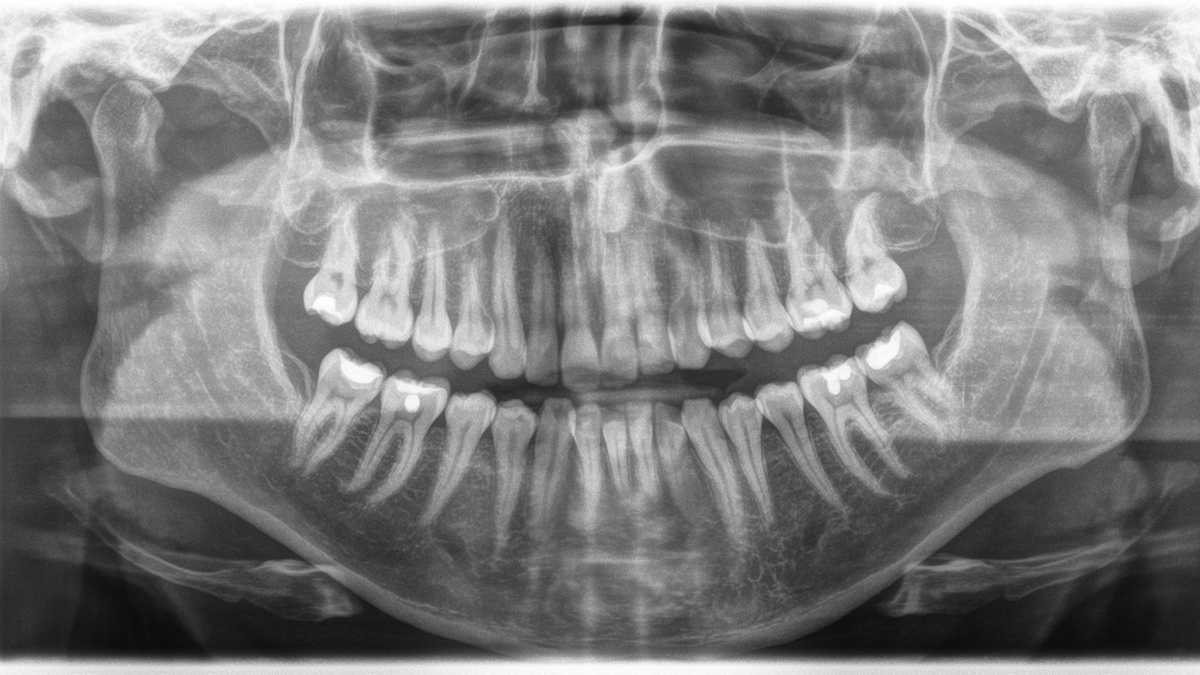

Given indications

Prophylactically treated full dentition

Wisdom teeth are not present

Large maxillary sinuses are visually inconspicuous

The adjacent anatomical structures are also radiographically inconspicuous

Technical Data

Overview of technical features

Overview Chart

2D unit	Orthophos XG 3
Programs
	[P1] - Standard panorama with orthoradial beam direction
	[P1L] [P1R] - Standard panorama half-sides left and right, e.g. for test exposures
	[P1C] - Panorama with a constant magnification of 1.25. For length measurements using a reference object
	[P1A] - Panorama with artifact reduction. For patients with numerous metal fillings
	[TM1.1 / TM1.2] - Lateral temporomandibular joint with closed or open occlusion. For functional diagnostics
	[BW10] Bitewing program, e.g. as a replacement for intraoral images (patients with pharyngeal reflex)
	[P20] Panoramic radiography without ascending rami, e.g. for treating children
Tube head
X-ray generator	60-90 kV; 3-16 mA
Focal spot size acc. to IEC 60336	0.5 mm
Total filtration acc. to IEC 60522	> 2.5 mm Al
2D Imaging
Sensor	Digital CCD line sensor
Active sensor area	138 x 6.48 mm
Pixel size	27 μm
Focus-sensor distance	530 mm
Ceph Imaging	Not available
General information
Country of Origin	Made in Germany. Made by Dentsply Sirona.
Dimensions (D x W x H)	1.411 x 1.28 x 2.25 m / 5'3'' x 4'2.4'' x 7' 4.5''
Weight	110 kg / 242 lbs
Operating Conditions
Air humidity	10% to 95%
Temperature	+10° to +40°C (50° to 104°F)

FAQ

What are the system requirements?

The requirements actually follow those for the image processing software, Sidexis. Details on dentsplysirona.com/sidexis-4-system-requirements

I already have Sidexis XG. Do I have to switch to Sidexis 4 in order to use an Orthophos XG 3?

No, you do not have to switch. Orthophos XG 3 works with both Sidexis XG and Sidexis 4. Nevertheless for a better user experience, we recommend installing Sidexis 4, as data migration from Sidexis XG to Sidexis 4 is very easy.

Can I add a cephalometric arm to my Orthophos XG 3 later on?

No, Orthophos XG 3 is the only Orthophos unit with no ceph capability. If cephalometric imaging may be useful to your diagnosis, we recommend you to look at the Orthophos XG 5 or Orthophos XG 3Dready.

Can I upgrade an Orthophos XG 3 with a 3D sensor?

No, Orthophos XG 3 does not allow a 3D upgrade. If 3D imaging may be useful to your diagnosis in the future, we recommend that you consider the Orthophos XG 3D ready.

Are all Orthophos XG 3 units equipped with a CsI sensor?

The Orthophos XG 3 unit is equipped with a Lanex sensor as standard. The Csi Sensor is an optional feature that can be chosen when configuring the unit.
