Proven Patient Positioning
Only 2 light localizers are required for ideal positioning in the sharp layer. The motorized forehead and temple supports fixate the patient's head and prevent motion blurring.
Get Started in Digital Imaging

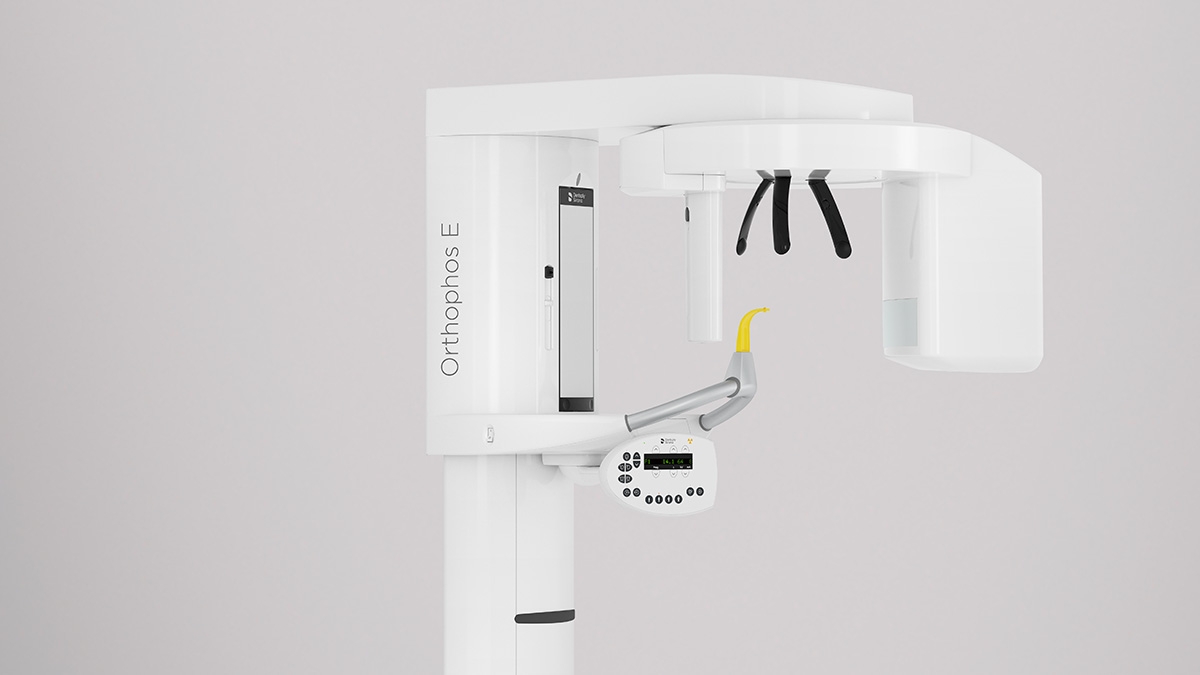

The sound 2D x-ray unit providing a smooth entrance into the world of digital imaging. Thanks to CsI sensor technology and its easy-to-use interface, you are ensured reliable diagnostics every time. The cephalometric option also makes the Orthophos E a reliable partner for orthodontics. Enrich your practice with a wide range of services that are only possible with digital imaging.
Your Advantages at a Glance
The Orthophos E is the go-to solution for general dentists and orthodontists. Diagnostic accuracy is made possible by the many advantages you get when choosing digital imaging.
Reliable diagnosis
Thanks to the 2D-CsI Plus sensor and reliable image quality
Safe and proven patient positioning
With motorized temple and forehead support, automatic temple width measurement, light localizers and sturdy handles
Ceph images
A left ceph arm can be ordered or retrofitted at any time
Important 2D programs
For basic diagnostics in 2D
Easy and thoughtful operation
With the MultiPad control panel
Orthophos E – Highlights

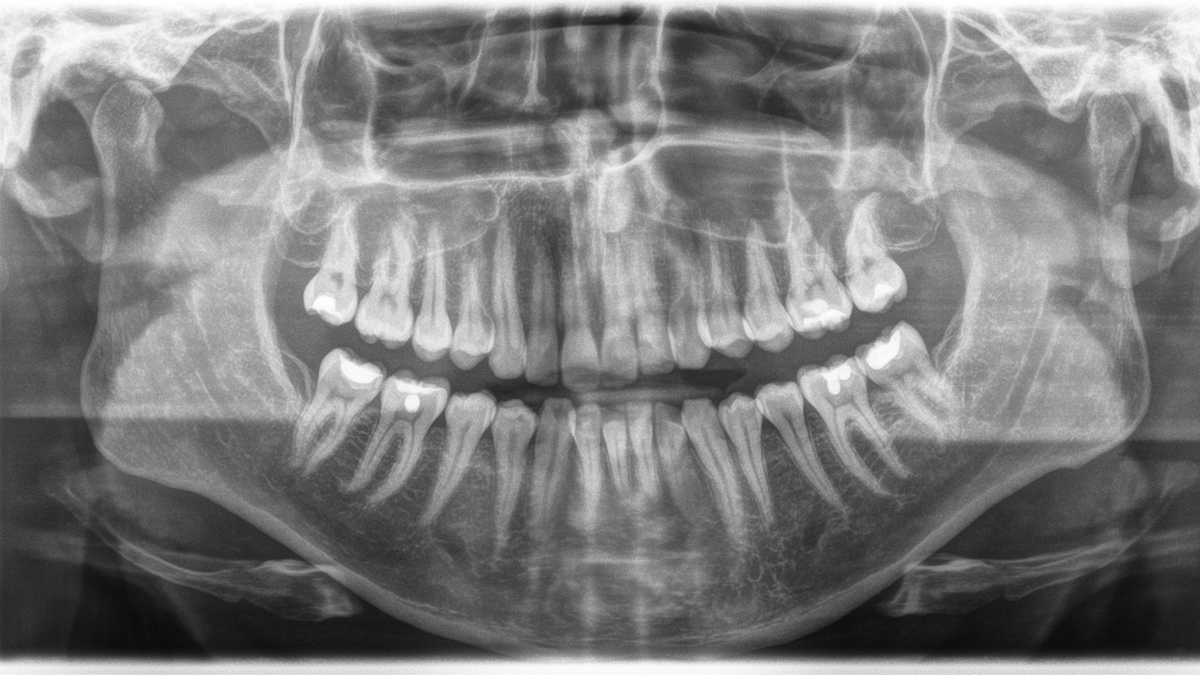

Gallery of Sample 2D Panoramic Images
-
Given indications
- Adolescent, full dentition with orthodontic braces
- Agenesis of teeth 18 and 28 with the presence of odontoblasts in 38 and 48
- The incomplete root growth in 37 and 47 as well as the root development of the two wisdom teeth are evidence of the patient's young age
- Maxillary sinuses and surrounding anatomical structures not radiographically apparent
-

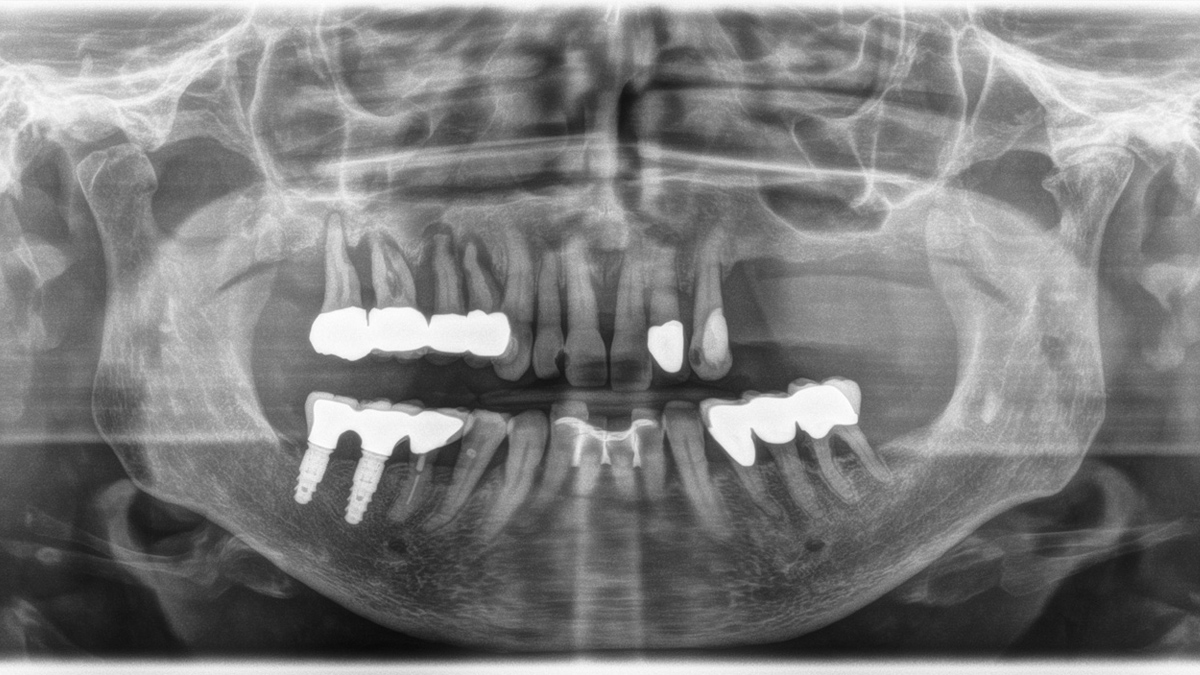

Given indications
- Prosthetic and prophylactic treatment of dentition
- Hypodense clearly limited changes to the hard tooth substance in teeth 12, 11 and 22 (presumably non-x-ray-opaque composite fillings here)
- Hyperdense filling material in the roots of teeth 11, 36 and 35 without an indication for periapical lucency
- Status post apicoectomy on tooth 36 with retrograde obturation of the mesial and distal roots. Good osseous union of the apical bone tissue, no indication of recurrent periapical osteolysis
-
Given indications
- Dentition badly damaged by periodontitis, with generalized horizontal bone resorption and vertical cavities with teeth 17 – 14 requiring extraction
- Hypodense, homogenous and clearly delimited changes to the hard tooth substance on 12 mesial, 11 distal and 23 mesial with suspected caries or a differential diagnosis of non-x-ray-opaque composite fillings
- Differential diagnosis: Caries or non-x-ray opaque composite fillings
- PFM bridge at teeth 36 – 34 due to furcation on tooth 36 and calculus deposits mesially.
- Splinting of teeth 32-42 from past periodontal history
- Hyperdense filling material in tooth 45 without an indication for periapical lucency.
- Implant-based treatment in the region of teeth 46 and 47 with radiographically inconspicuous PFM hybrid bridge 45 – 47
-
Given indications
- Prophylactically treated full dentition
- Wisdom teeth are not present
- Large maxillary sinuses are visually inconspicuous
- The adjacent anatomical structures are also radiographically inconspicuous

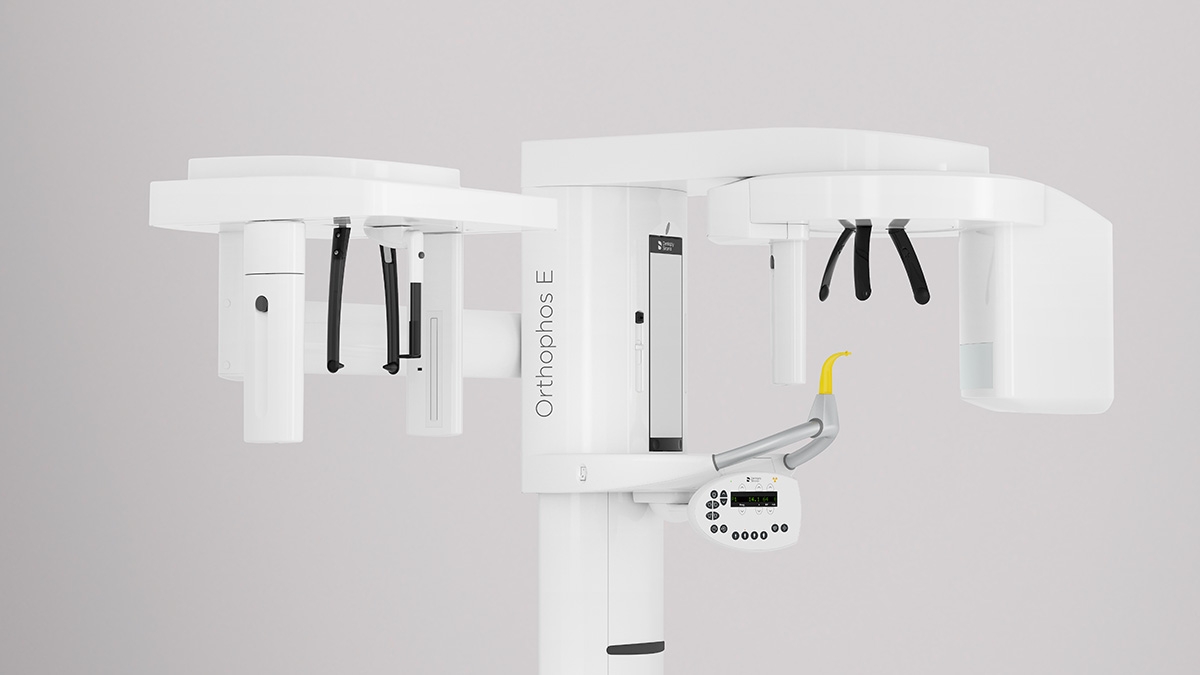

Cephalometric Imaging

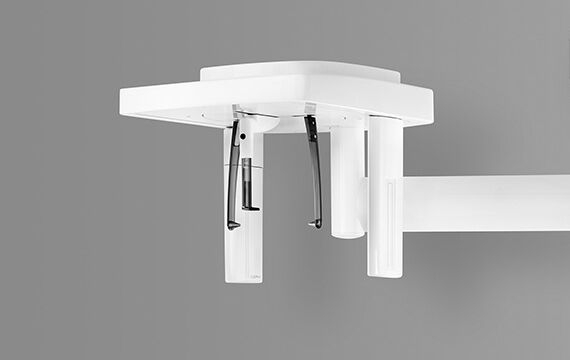

Orthophos E offers the capability to install a left cephalometric arm at any time, whether initially at the time of order or retrofitted later on.

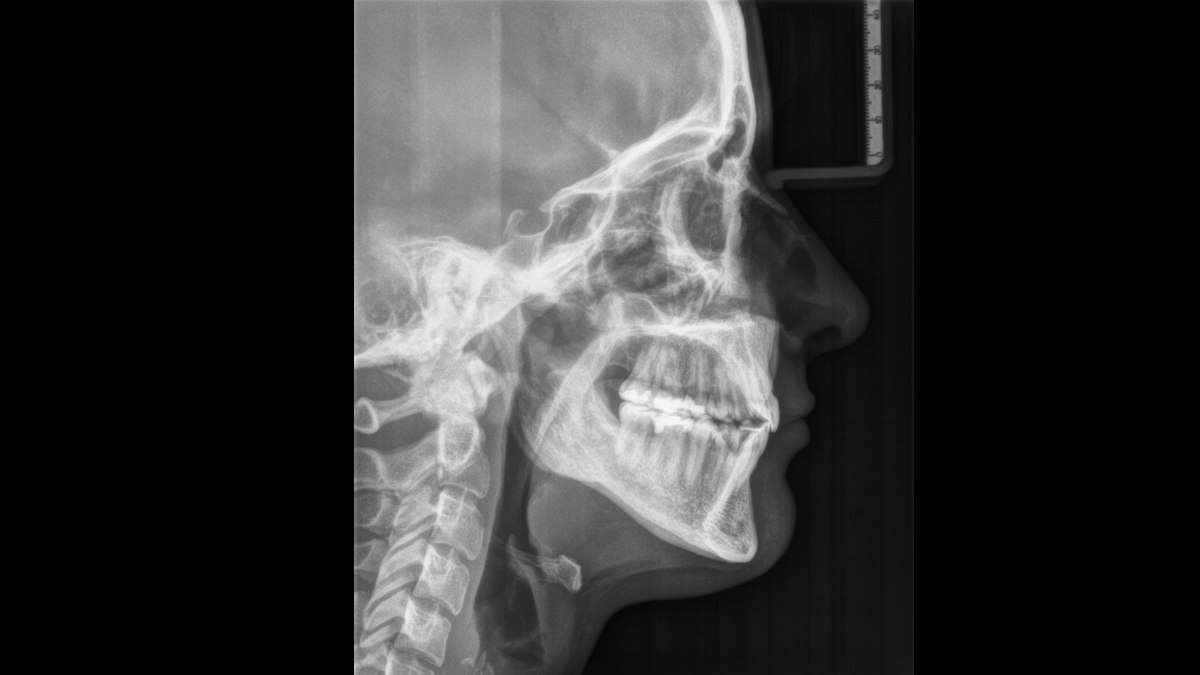

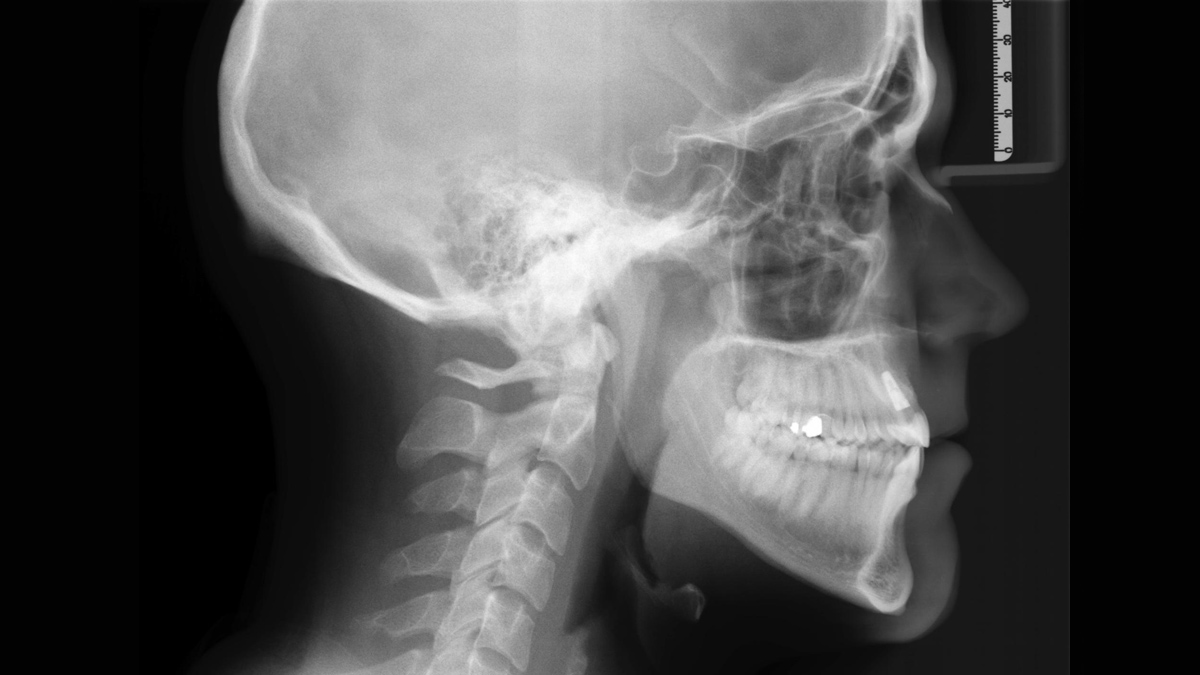

Sample Gallery of Cephalometric Images
Technical Data
Performance features |
Axeos |
Orthophos SL 3D |
Orthophos S 3D |
Fields of View (cm) |
5x5 to 17x13 |
5x5 to 8x8 |
5x5 to 8x8 |
3D Low Dose |
yes |
yes |
yes |
HD mode |
yes |
yes |
yes |
Smart height adjustment |
yes |
- |
- |
X-ray generator |
60 - 90 kV, 3-16mA |
60 - 90 kV, 3-16mA |
60 - 90 kV, 3-16mA |
Panoramic exposure time |
P1: max 14,2 s |
P1: max 14,2 s |
P1: max 14,2 s |
Radiation time Ceph |
Standard 9,4 s |
Standard 9,4 s |
Standard 9,4 s |
User interface |
new EasyPad |
EasyPad |
EasyPad |
Patient positioning |
automatic (occlusal bite block) |
automatic (occlusal bite block) |
automatic (occlusal bite block) |
Panorama technology |
DCS |
DCS |
CsI Plus |
Autofocus |
yes |
yes |
yes |
Ceph arm (optional) |
left or right |
left or right |
left or right |
Ceph unit with 2 sensors |
yes |
yes |
yes |
Quickshot |
yes |
yes |
yes |
Base |
optional |
optional |
optional |
Wheelchair accessible |
yes |
yes |
yes |
Remote control |
optional |
optional |
optional |
Ambient Light |
yes (cabinet and backlight) |
yes (backlight) |
- |
All 2D Programs at a Glance
| Programme | Orthophos SL 2D | Orthophos S 2D | Orthophos E |
|---|---|---|---|
| Standard panorama image |
P1, P2, P10 |
P1, P2, P10 |
P1, P10 |
| Image detail left side or right side |
P1, P1A, P1C P2, P2A, P2CP10, P10A, P10C BW1 |
P1, P1A, P1C P2, P2A, P2CP10, P10A, P10C BW1 |
P1L, P1R |
| Image detail individual quadrants |
P1, P1A, P1C P2, P2A, P2CP10, P10A, P10C |
P1, P1A, P1C P2, P2A, P2CP10, P10A, P10C |
- |
| Image detail upper or lower jaw |
P1, P1A, P1C P2, P2A, P2CP10, P10A, P10C, P12 |
P1, P1A, P1C P2, P2A, P2CP10, P10A, P10C, P12 |
- |
| Constant magnification |
P1C, P2C, P10C |
P1C, P2C, P10C |
P1C |
| Artifact-reduced |
P1A, P2A, P10A |
P1A, P2A, P10A |
P1A |
| Thick layer front |
P12 |
P12 |
P12 |
| Sinusoidal images |
S1, S3 |
S1, S3 |
S1 |
| Multislice in posterior tooth |
- | - | MS1 |
| Mandibular joint |
TM1.1, TM1.2, TM3 |
TM1.1, TM1.2, TM3 |
TM1.1, TM1.2 |
| Bitewing image |
BW1, BW2 |
BW1, BW2 |
BW1 |
| Ceph (optional) |
C1, C2, C3, C3F, C4 |
C1, C2, C3, C3F, C4 |
C1, C2, C3, C3F, C4 |
FAQ
For more details please see Sidexis 4 system requirements
Dentsply Sirona 2D units work exclusively with Sidexis 4. Nevertheless data migration from Sidexis XG to Sidexis 4 is very easy. Sidexis 4 allows for the full digital experience with the latest tools.
The Orthophos XG 3D ready and the Orthophos SL 2D allow a 3D upgrade. The other models (Orthophos XG 3 and Orthophos XG 5) do not offer this option.
